The Schlebach Quadro Rollformer: A Buyer's Guide for Roofing and Panel Shops

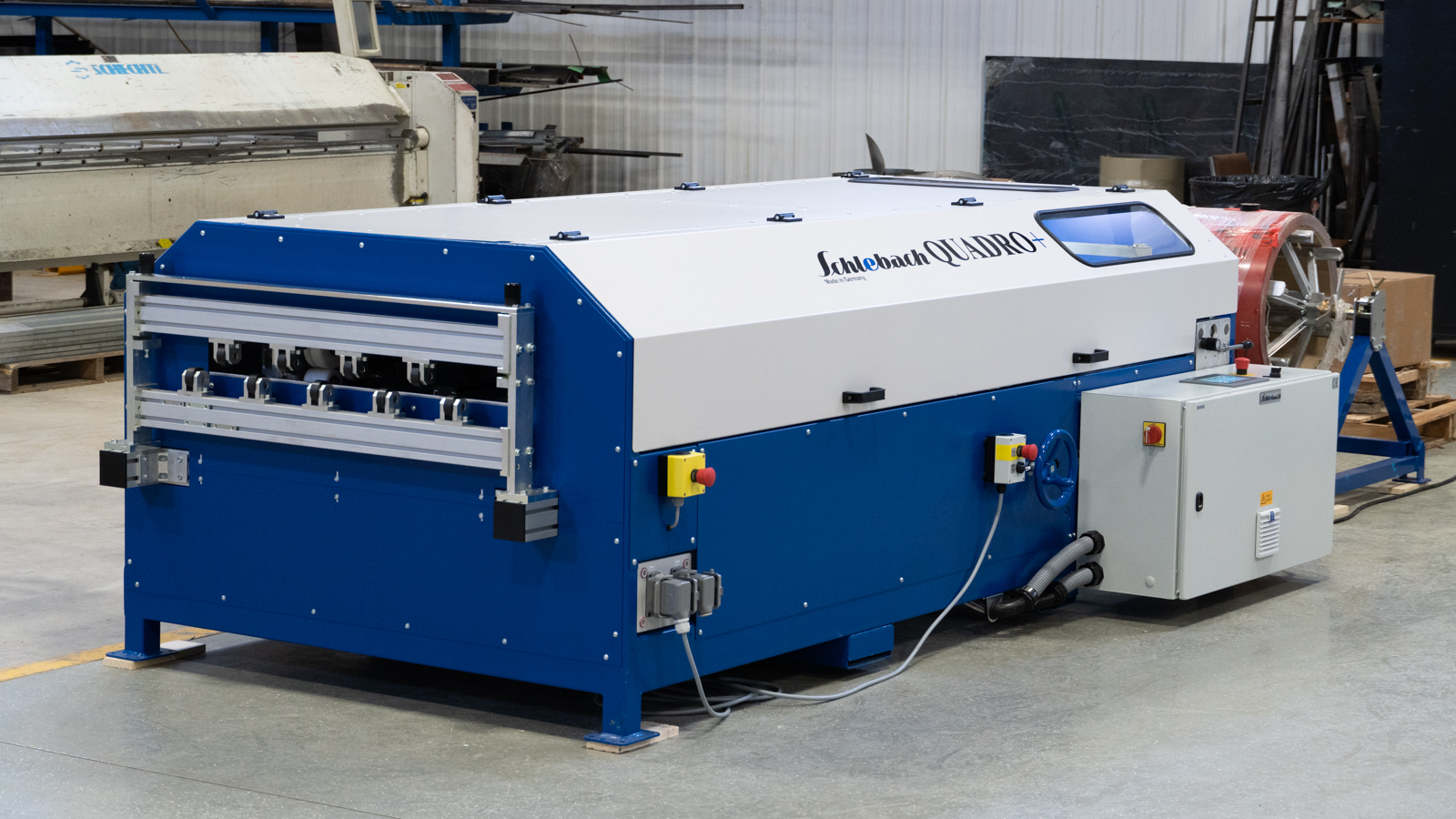

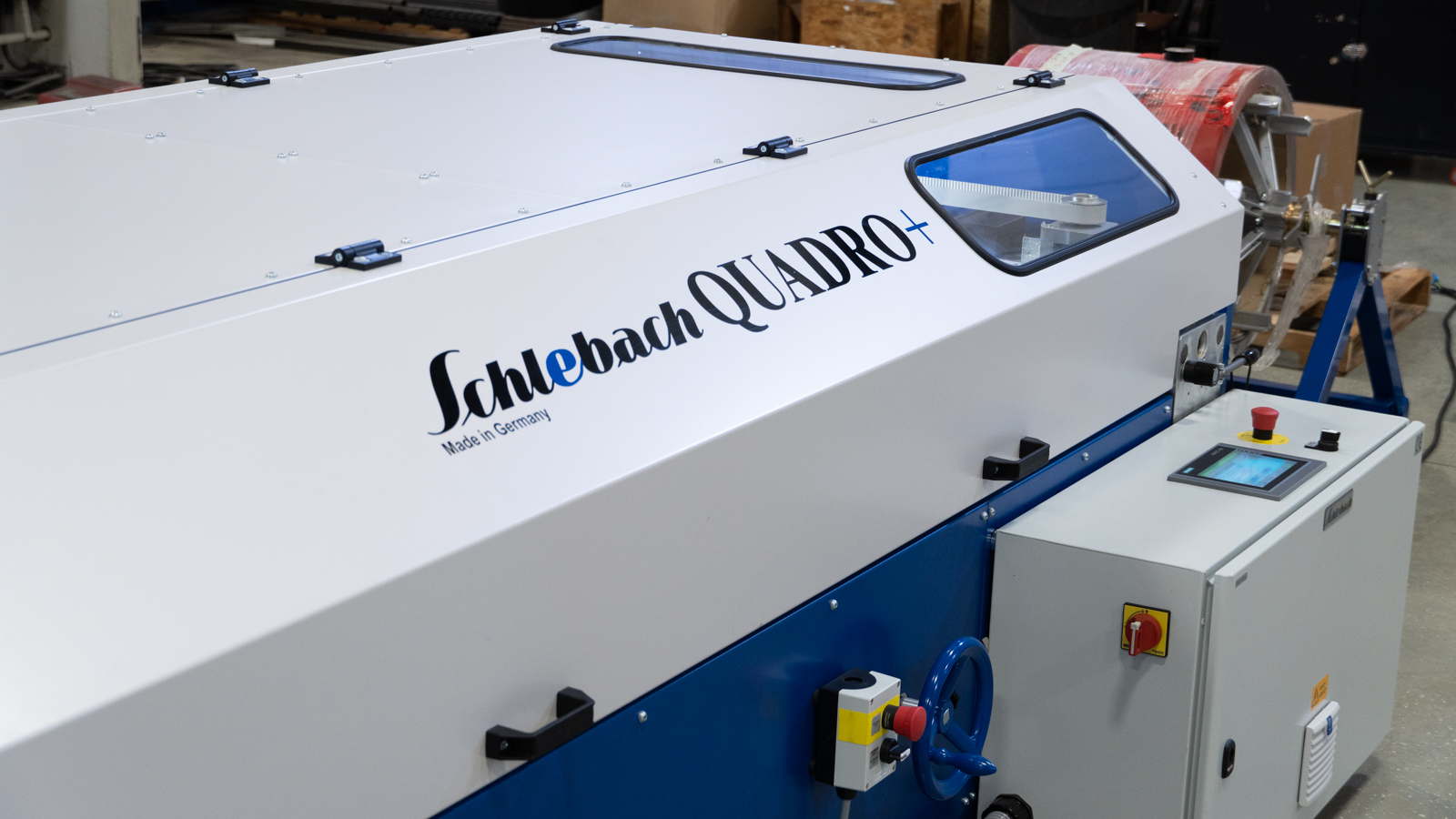

The Schlebach Quadro is a portable rollforming system built for roofing and panel shops that need to run multiple profiles on one machine. Where traditional rollformers lock you into a single profile or require lengthy retooling to switch, the Quadro is designed around fast profile changes — without sacrificing precision or panel quality.
This guide covers what the Quadro does, who it's built for, and the key considerations before you invest.
WANT TO KNOW IF THE QUADRO IS RIGHT FOR YOU?
Get Expert Guidance First
Buying a machine can be complicated, and there's a lot to consider — your current production, the profiles you want to run, and whether the Quadro's capabilities match where your business is headed. Empire's rollformer specialists will talk through all of it with you, so you land on the right choice.
Is the Quadro Right for Your Shop?
The Quadro is built for versatility. It's designed to give owners the ability to rollform many different types of panels on one machine — Mechanical Lock, Snap Lock, Nail Strip, wall panels, soffit panels, and board and batten profiles, in multiple varieties. If your current setup limits you to one profile, or if switching profiles costs you significant downtime, that's the problem the Quadro is built to solve.
It's also a modular machine, meaning its capabilities can be expanded over time as your business grows. If you're producing a narrow range of profiles today but expect that to change, the Quadro is designed to grow with you — you can add cassettes and accessories at any time without hitting a dead end.
That said, the Quadro is a significant investment. Before committing, it's worth assessing the range of profiles you plan to produce, your production volume, and how the machine's features align with your longer-term goals. As we say at Empire: buy for where you're going, not where you are now.
Quick Self-assessment
The Quadro is likely a strong fit if:
- You need to produce multiple panel profiles — Mechanical Lock, Snap Lock, Nail Strip, wall panels, soffit panels, or board and batten
- Profile changeover on your current equipment takes too long and interrupts production
- Oil canning is a recurring quality issue with your current panels
- You need precise, consistent panel lengths with minimal material waste
- You want a machine you can expand with additional profiles and accessories as your business grows
Key Features
The Quadro's performance comes down to four core components. Here's the short version — the full technical detail is in the Buyer's Guide PDF.

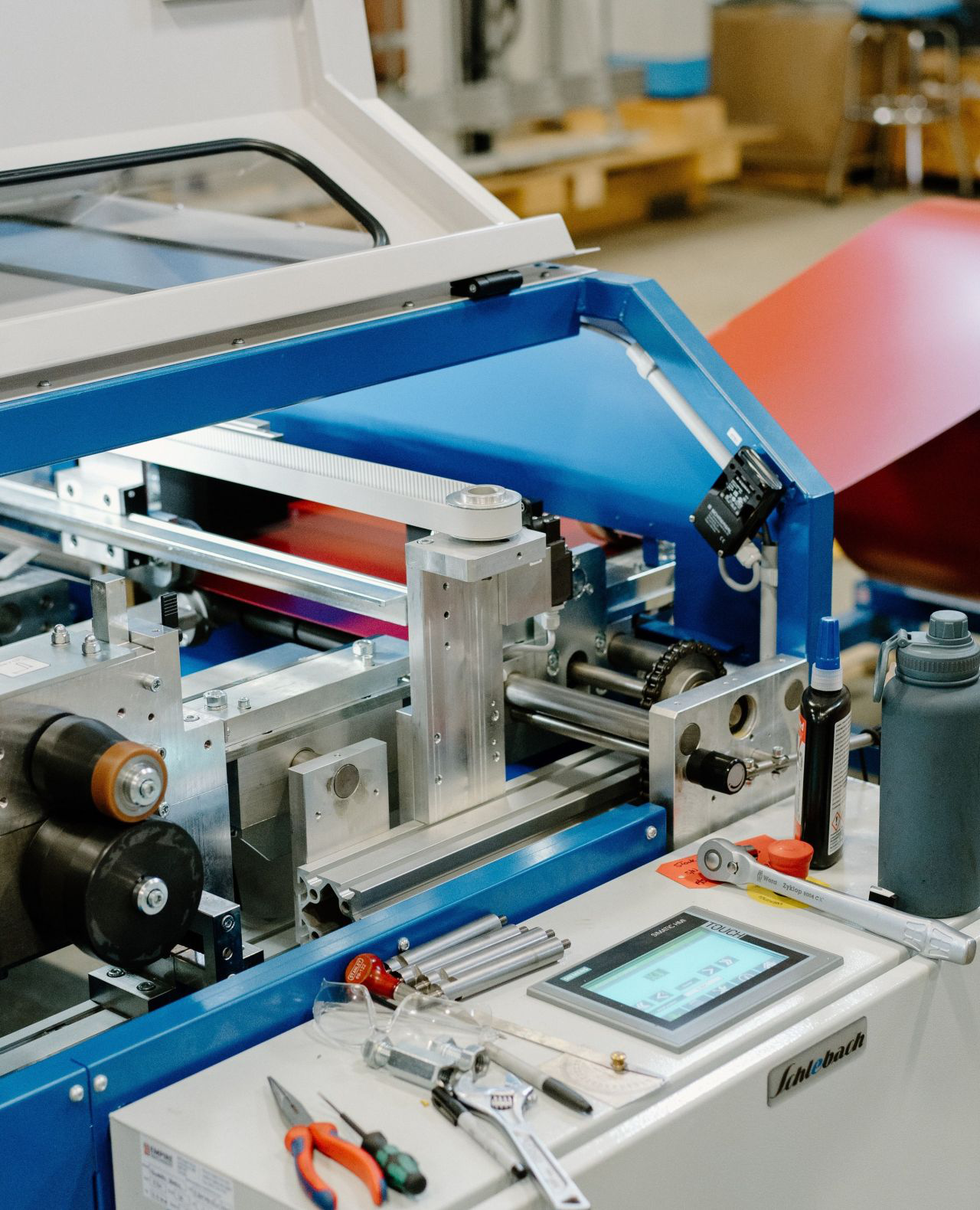

Quick-Change Cassette Roller System
Traditional rollformers require significant downtime to retool when switching profiles. The Quadro's rotating cassette design brings that down to under two minutes — rotate the cassette, flip it if needed, and adjust for the next profile. Some cassettes are reversible, reducing changeover further. This eliminates rebuilding and substantial adjustments between profiles.
Hybrid Drive System
The Quadro uses only two drivelines, which means the drive mechanism only contacts the edges of the material — the middle of the panel is left undisturbed. This directly reduces oil canning, one of the most common quality problems in metal panel production. The system also enables tapered panels and double male/female panels to be produced in two passes.

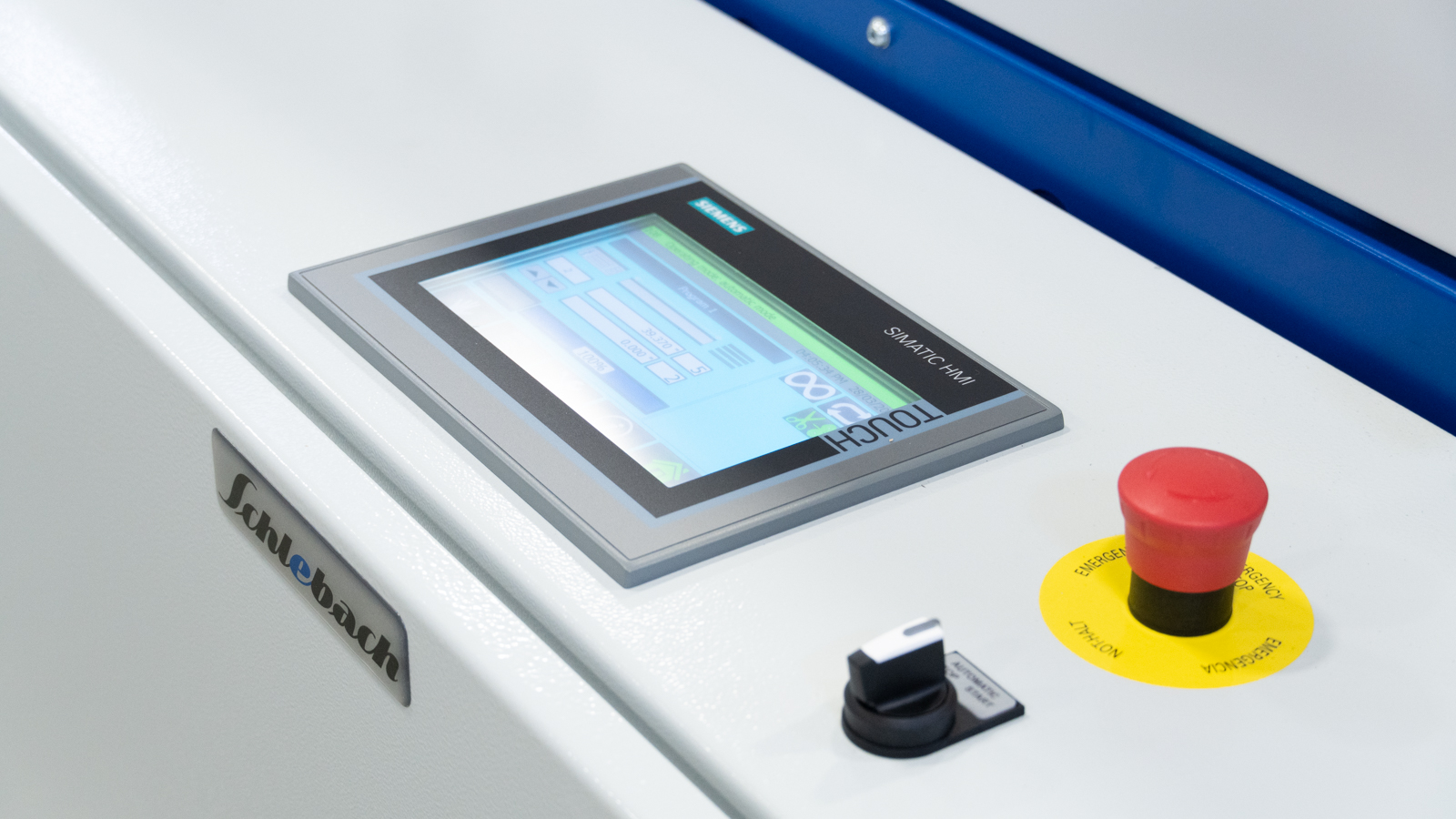

Siemens Touch Screen
The Siemens touch panel controls feed rate and time delays between panels, and switches between manual and fully automated mode. In automated mode, you can program multiple lengths and quantities and let the machine run a complete job without intervention — reducing labour costs and improving consistency.

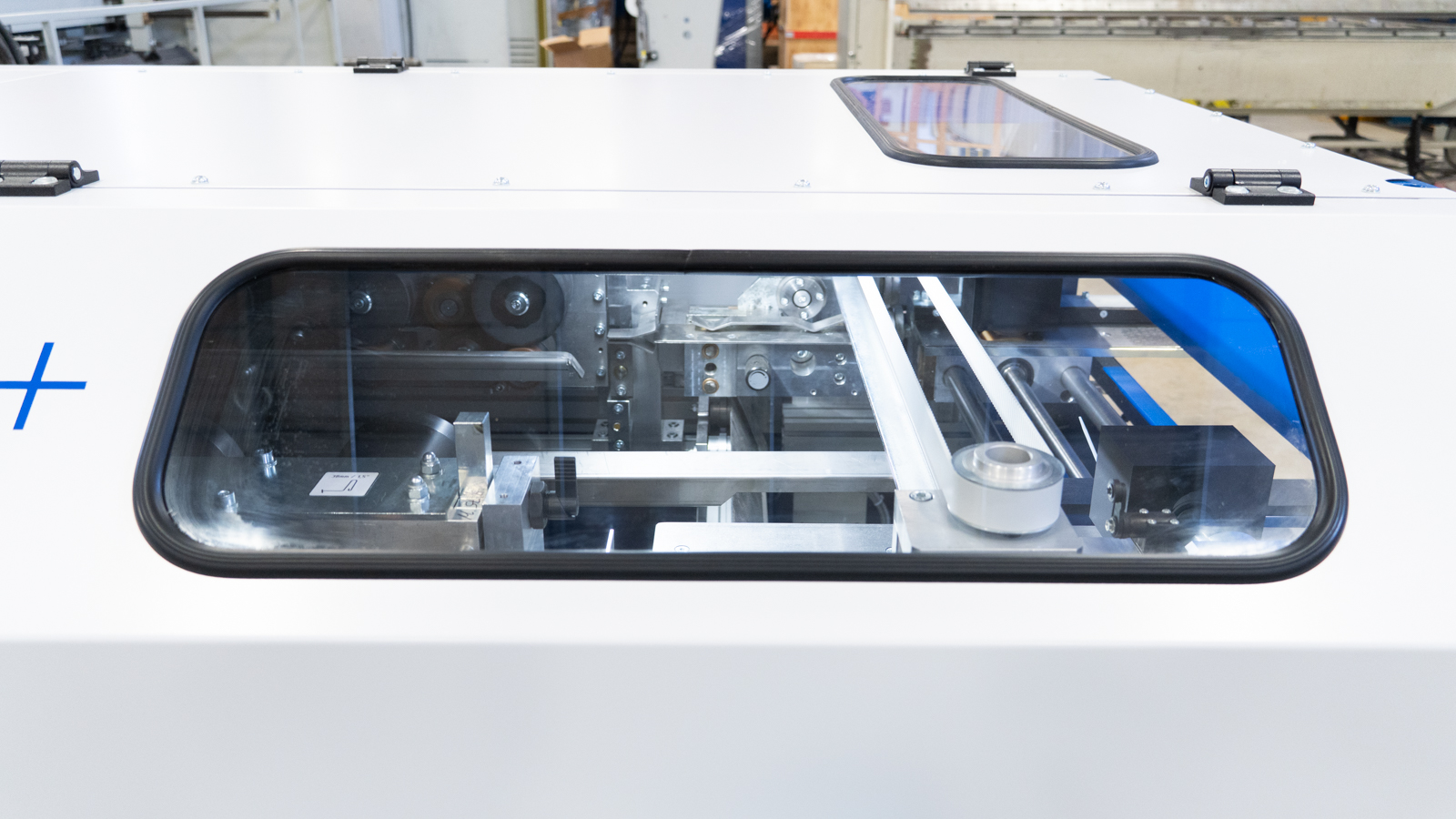

Rotary Front Cut Shear
The Quadro pre-cuts material in the flat before it enters the forming system. This eliminates the errors that come from cutting after forming and allows for zero-cut operations. When changing coil widths or profiles, there’s no need to adjust the slitting blades. Rotary slitting blades are simpler to maintain and less expensive to replace than shear-style blades.
Profile Versatility and Modularity
What the Quadro Produces

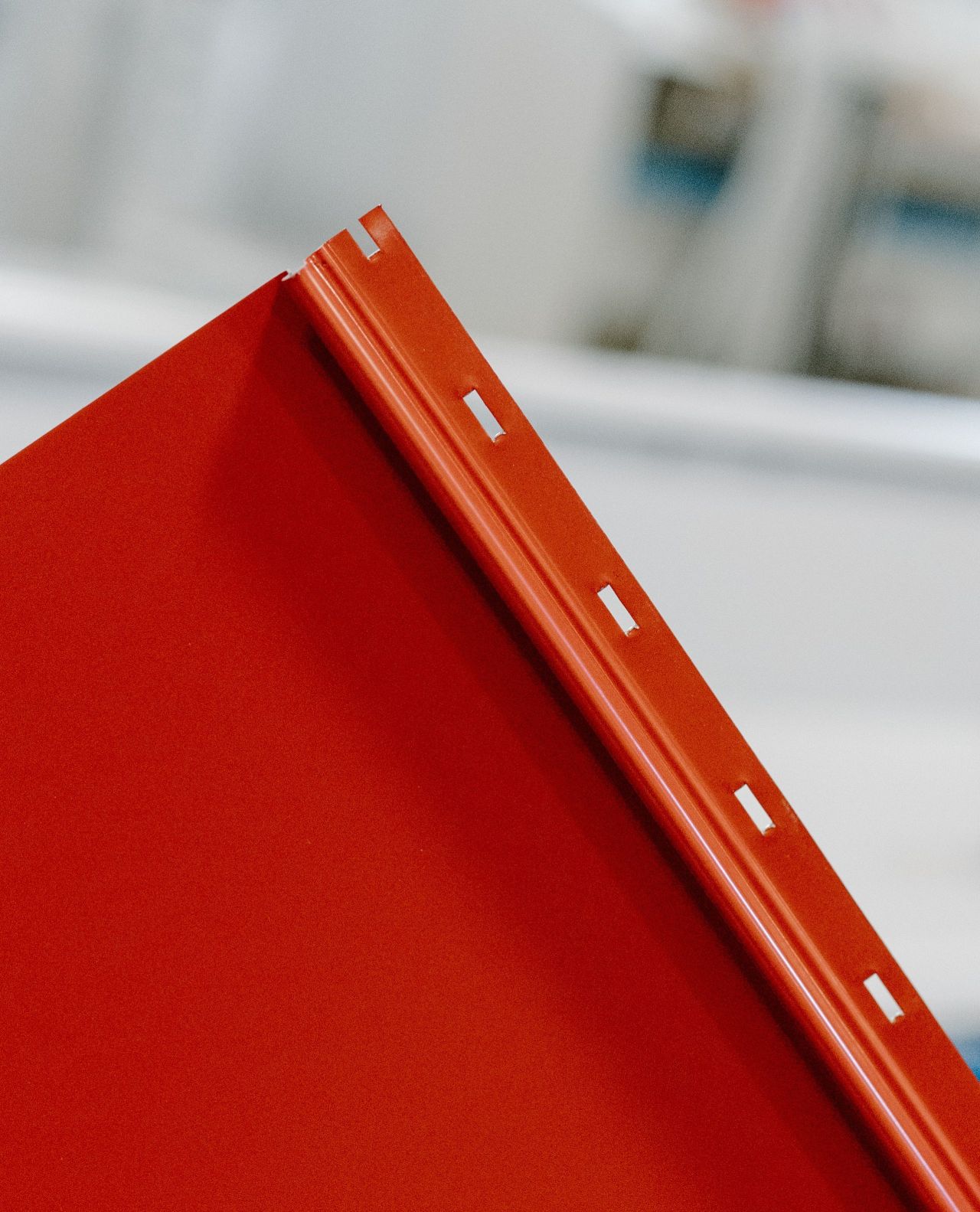

The Quadro handles Mechanical Lock, Snap Lock, and Nail Strip profiles in multiple varieties, along with wall panels, soffit panels, and board and batten profiles. The machine switches between them with minimal effort, letting you serve a broad range of customers and projects from a single piece of equipment.
How It Grows With Your Business
The Quadro is modular by design. Accessories — including notching systems, finishing attachments (striation, wide rib, and pencil rib), and powered pullouts — can be added at any time. Additional cassettes can be added to expand the number of profiles the machine can produce. If your client specifications change or you move into new markets, your setup can grow to match.
Frequently Asked Questions
What should I look for in post-sale service?
Service is one of the most important factors in any rollformer purchase. Every time a machine is down, your shop productivity drops and downtime costs accumulate. When you pick up the phone, you need someone who answers and can provide solutions.
When evaluating any vendor, ask:
- How quickly can a technician reach your shop, or provide remote support?
- How fast can replacement parts be sourced and delivered?
- What does post-sale support look like beyond the warranty period?
Empire has a complete in-house service department with factory-trained technicians in Manitoba and Ontario, available for off-site service across Canada.
Ready to See If the Quadro Is the Right Fit?
The Quadro is a well-engineered machine for roofing and panel shops that need profile flexibility, panel quality, and room to grow. Whether you're running one profile today and planning to expand, or you're dealing with changeover downtime that's costing you production hours, it's worth having a detailed conversation before you decide.
Empire has been distributing sheet metal and metal fabrication equipment across Canada and the U.S. since 1987. Our team can walk through your specific production requirements, the profiles you want to run, and whether the Quadro's capabilities line up with where your business is headed.
Browse the Quadro Rollformer page, download the full Buyer's Guide PDF, or contact one of our Product Specialists directly.
The Complete Resource
Download the Full Quadro Rollformer Buyer's Guide PDF
Get the complete technical detail — full specs, cassette system diagrams, profile selection, and accessories — in the Quadro Rollformer Buyer's Guide PDF.
