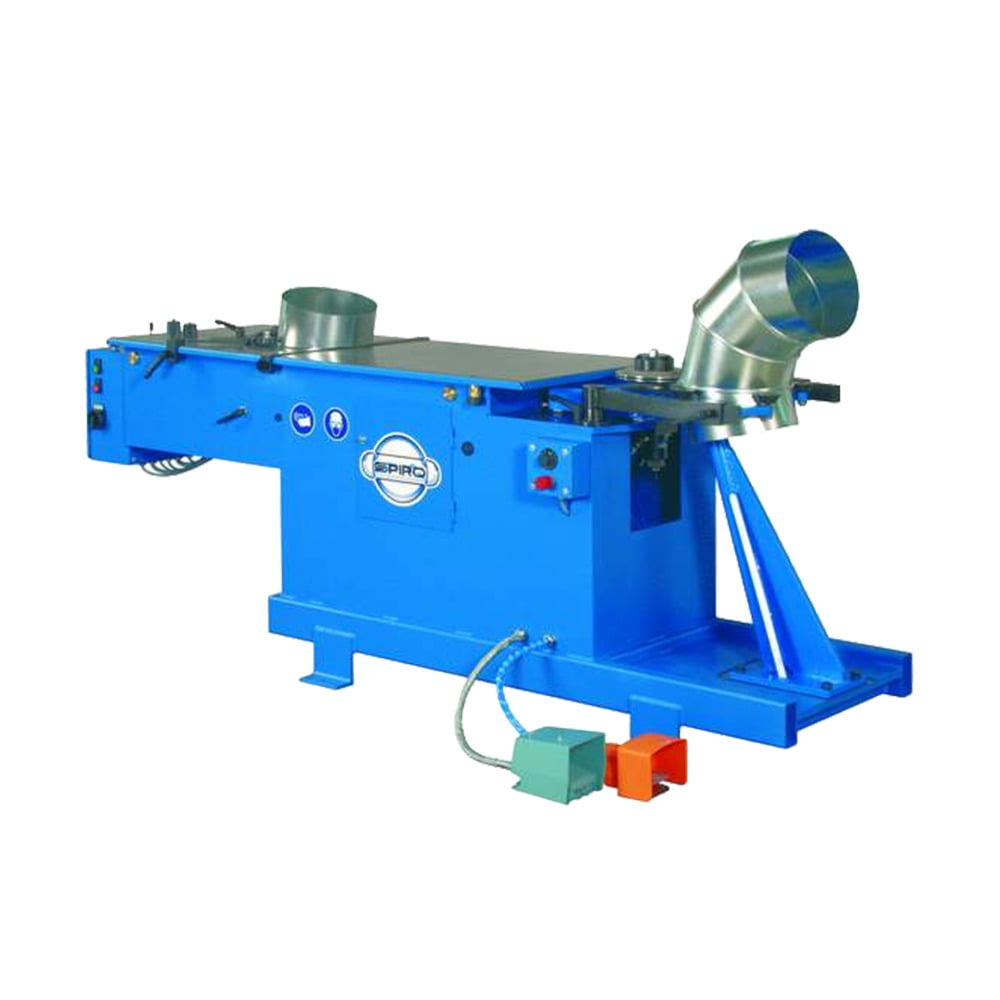

Spiral-Helix Gorelocker Sport Plus

Combining two machines into one, the Sport Plus offers a Flanger/Swager which will flange one side of a cylindrical gore and swage the connecting side of the next gore with a flip of a switch. The Lockseamer, at the opposite end, finalizes the operation by closing the seam into a Standing Rib. Both the operations can be done simultaneously, increasing productivity.

Using minimal power and floor space, the Gorelocker Sport Plus handles a variety of materials and gauges to produce Standing Rib diameters from 5” to 50”. These airtight seals require no painting, coating or sealing. Additionally, no slag, heat, noise, water or sparks are produced, keeping your work environment safe and clean.

• Diameter: 5” – 50”
• Motor: 5.4 HP
• Maximum Thickness: .050”
• Weight: 1650 lbs

• Brochure
• Video
