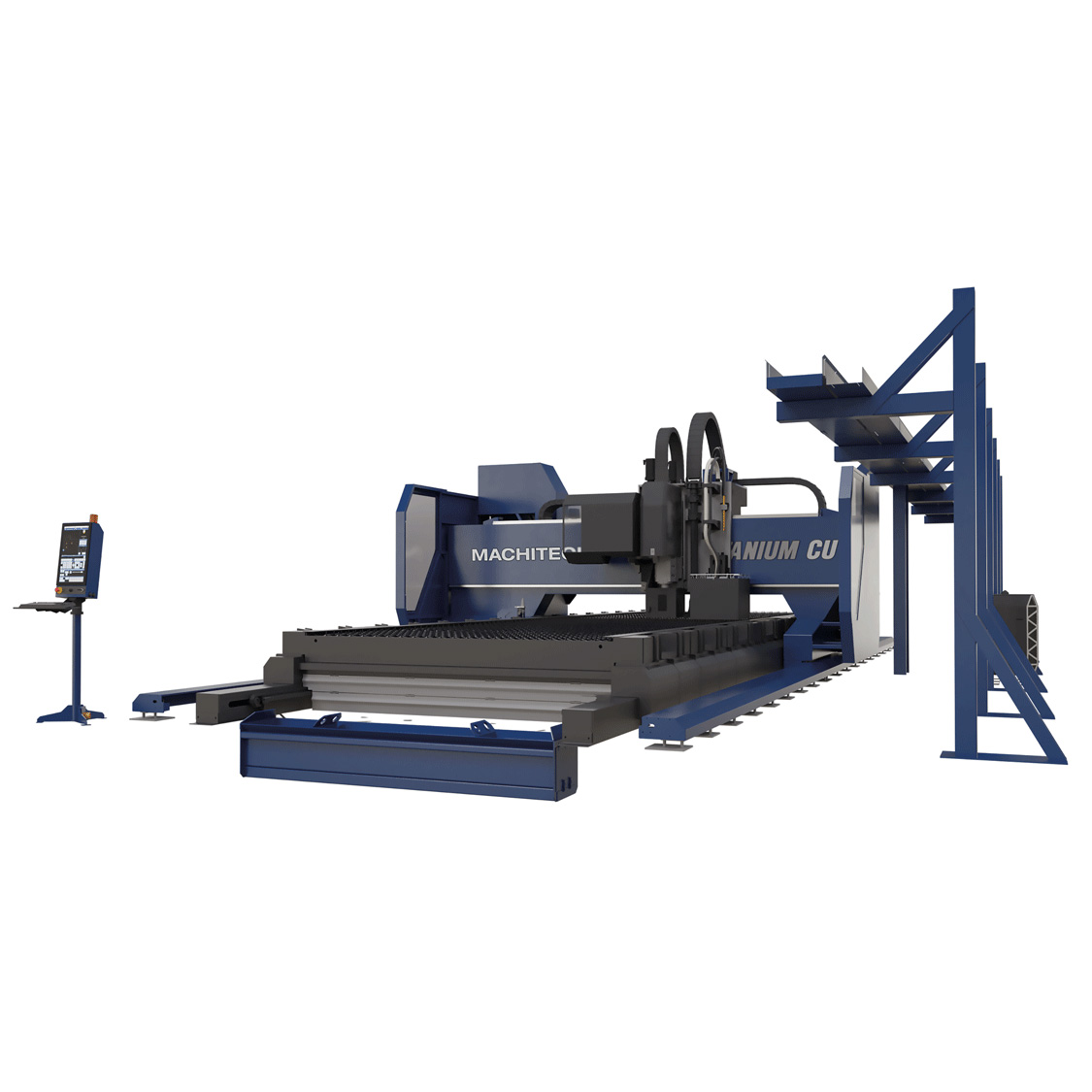

Machitech Titanium Cut CNC Plasma Cutting Table
Machitech Titanium Cut CNC Plasma Cutting Table is a plate processing machine. The strength of the dual beam steel gantries allow widths up to 20'. Optional 30HP drilling station and tool changer. Can be increased in size as your needs grow. Many options available to customize.
- SKUFAB TITANIUM CUT
- Plasma Cutting Tables
- Metal Fabrication
- The dual 12″x12″ heavy-duty steel gantries allow for widths up to 20′
- Optional 30HP drilling station and tool changer
- Can be increased in size as the customer’s needs grow
- Exceptional accuracy and cut quality
- Many options available
Short Description: | PLATE PROCESSING MACHINE, BRIDGE AND RAIL SYSTEM. |
Features: | The strength of the dual beam steel gantries allow widths up to 20′. Optional 30HP drilling station and tool changer. Can be increased in size as the your needs grow. Many options available to customize. |
Construction: | Bridge and Rail – Modular design allowing you to expand your cutting table in future |
Dimensions: | 10′ X 40′ 10′ X 60′ 10′ X 80′ 15′ X 20′ 15′ X 40′ 15′ X 60′ 15′ X 80′ 20′ X 20′ 20′ X 40′ 20′ X 60′ 20′ X 80′ Custom dimensions available |
Cutting Speed: | 0 to 500 IPM, related to process and plasma power source |
Maximum Traverse Speed: | 800 IPM |
Repeatability: | 0.001″ |
Positioning Accuracy: | 0.003″ |
Material Support: | Waterbed with raise/lower system – Zoned downdraft with removable trays with CAD Fabrication drawings supplied |
Gantry: | Dual 12’’ x 12’’ steel, fully machined Clearance under gantry: 12’’ 3/4’’ helical Agma10 rack and pinions 35mm linear bearings, on machined surfaces Cables and hoses are protected by the structure and enclosed powertrack Welded and machined over sized end-trucks, for maximum stability Heat shield under the gantry |
Rails: | Inverted highly accurate 1.25″ helical Agma10 rack and pinions protected against dust and impact 50mm linear bearings, on machined surfaces Floor mounted rails |
Motors: | Dual side drive, Bosch Rexroth A/C Servo motors with digital Sercos III drive controller Pneumatic pinion engagement with linear bearings Ultra precision helical planetary gearboxes for the smoothest motion |
CNC Controller: | Edge Pro CNC controller, SercosIII Windows based, 15” glass touch screen 2 USB port and network connection Up to 1GB memory Phoenix software Part Program Support (PPS), Remote Help, Auto gas support, DXF import, and shape nesting 2 year warranty |
Maximum Table Capacity: | 8″ material thickness, customizable |
Power Source: | Hypertherm HPR 130XD to 800XD |
Motorized Station: | 2 max. |
Oxy/Fuel Station: | 8 max. Belt system |
Automatic Height Controller: | Machitech Automatic torch height control, uses arc voltage sampling to follow variations in material. Laser pointer integrated for plate alignment Magnetic torch breakaway system used to pause machine in case of collision. |
Suggested Nesting Software: | Hypertherm Cam Solutions ProNest |
Options Available: | “Full suite” technology by Hypertherm “True Hole” technology by Hypertherm 30HP drilling station Dust collection system Electronic raise/lower system (waterbed) Full contour beveling Ink jet or dot peen marker Oxy/fuel automatic torch ignition Oxy/fuel torch (anti-collision and quick change magnet system) Pneumatic scribe Removable trays for easy clean out (waterbed or downdraft) Tool changer (up to 6 different tools) Security system (pull cord, light curtain) |
1 Year Parts and Labour Warranty
