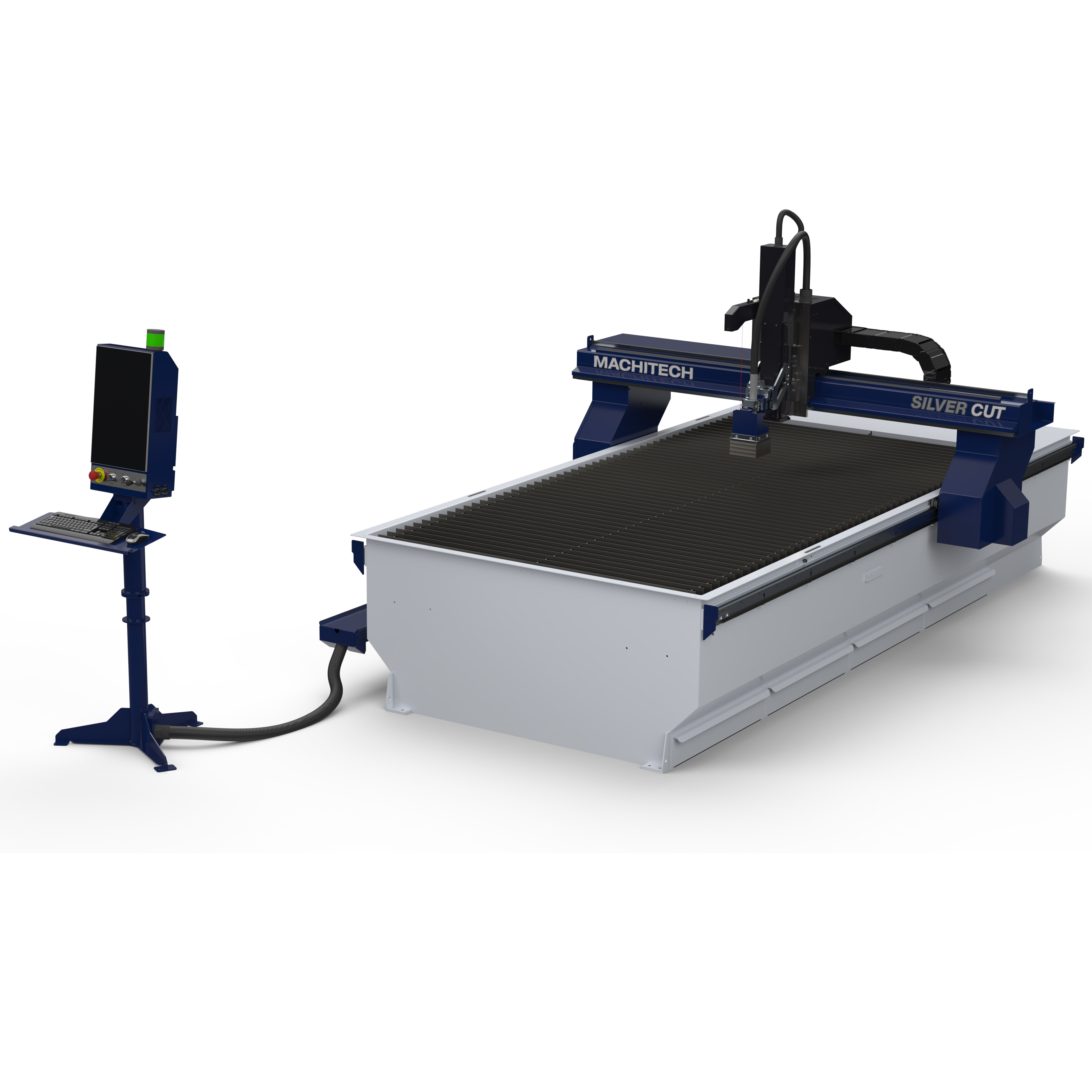

Machitech Silver Cut CNC Plasma Cutting Table is a plasma table ideal for small to medium fabrication and HVAC shops. It uses industrial quality components for long-term durability. It can be converted from waterbed to downdraft.
Table Sizes: 5' x 5', 5' x 10' and 6' x 12'
| Short Description: | THE MOST AFFORDABLE INDUSTRIAL QUALITY CUTTING MACHINE ON THE MARKET. |
| Features: | Ideal for small to medium fabrication and HVAC shops, this cutting table uses industrial quality components for long-term durability. Can be converted from waterbed to downdraft. Automatic torch height controller. Unitized design |
| Construction: | Unitized System |
| Table Sizes: | 5’ x 5’ , 5’ x 10’ or 6’ x 12’ |
| Cutting Speed: | 0 to 500 IPM, related to process and plasma power source |
| Maximum Traverse Speed: | 800 IPM |
| Repeatability: | 0.002″ |
| Positioning Accuracy: | 0.004″ |
| Material Support: | Waterbed or Downdraft Can be converted from waterbed to downdraft |
| Gantry: | • 6’’ x 6’’ Extruded aluminum • Clearance under gantry: 5” • Self-cleaning Dual Vee rails • 1/2” Agma 10 rack and pinion |
| Rails: | 1/2” Agma 10 rack and pinion, Self cleaning V bearing rails |
| Motors: | Industrial stepper motors on all axis, true dual drive |
| CNC Controller: | Machitech Automation CNC controller with 15’’ screen |
| Maximum Table Capacity: | 1.5″ material thickness |
| Power Source: | Hypertherm Powermax 45 to 125 |
| Motorized Station: | 1 max. |
| Oxy/Fuel Station: | 1 max. |
| Automatic Height Controller: | Machitech Automatic torch height control, uses arc voltage sampling to follow variations in material. Magnetic torch breakaway system used to pause machine in case of collision. Can be substituted for a roller ball floating disk for HVAC and light gauge cutting |
| Suggested Nesting Software: | Included in the Machitech Controller |
| Options Available: | Dust collection system Oxy-fuel torch Oxy-fuel torch ignition Removable trays for easy cleanout (waterbed) Source caption fume extraction Roller ball floating disk for HVAC and light gauge cutting |
