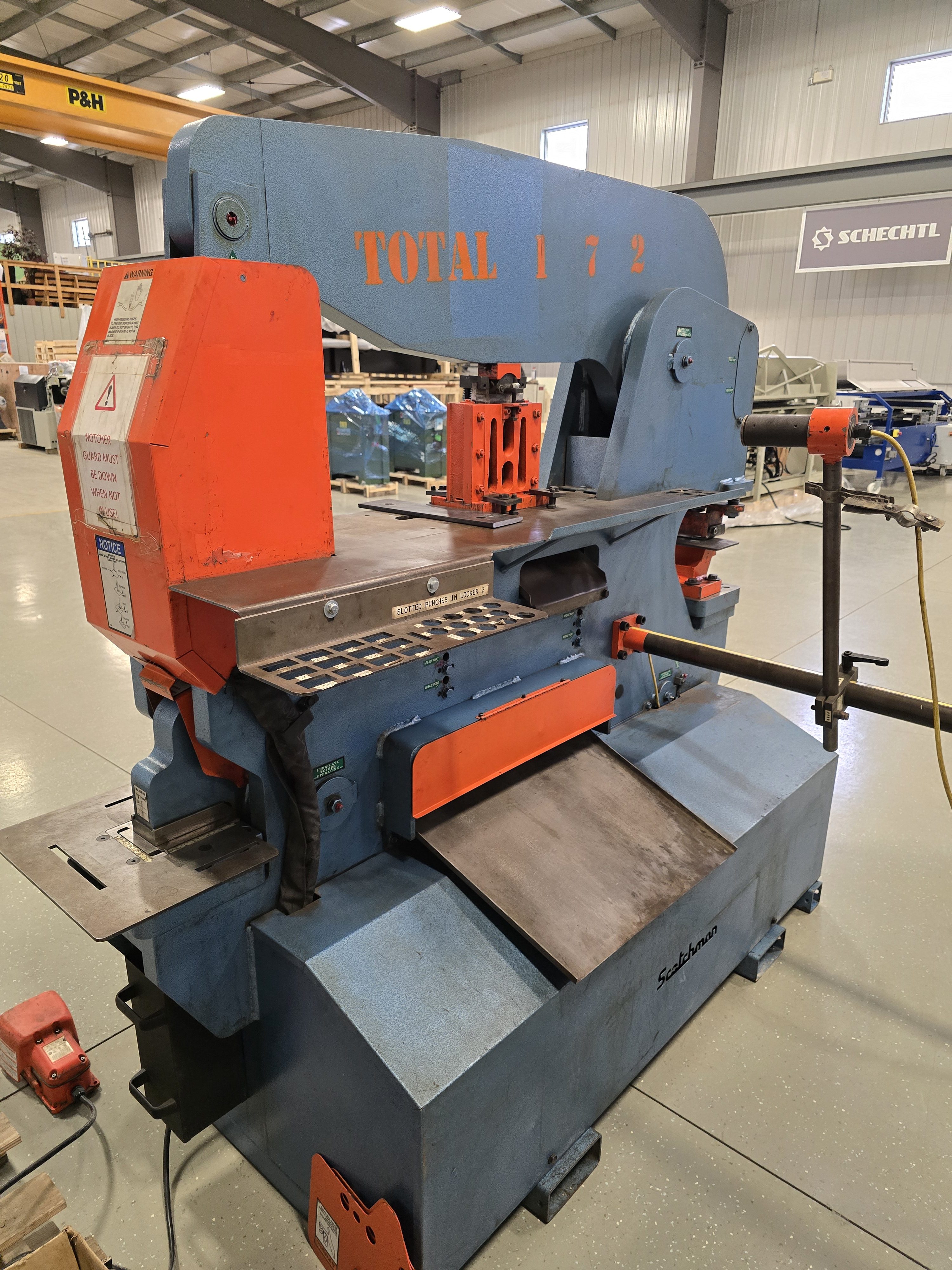

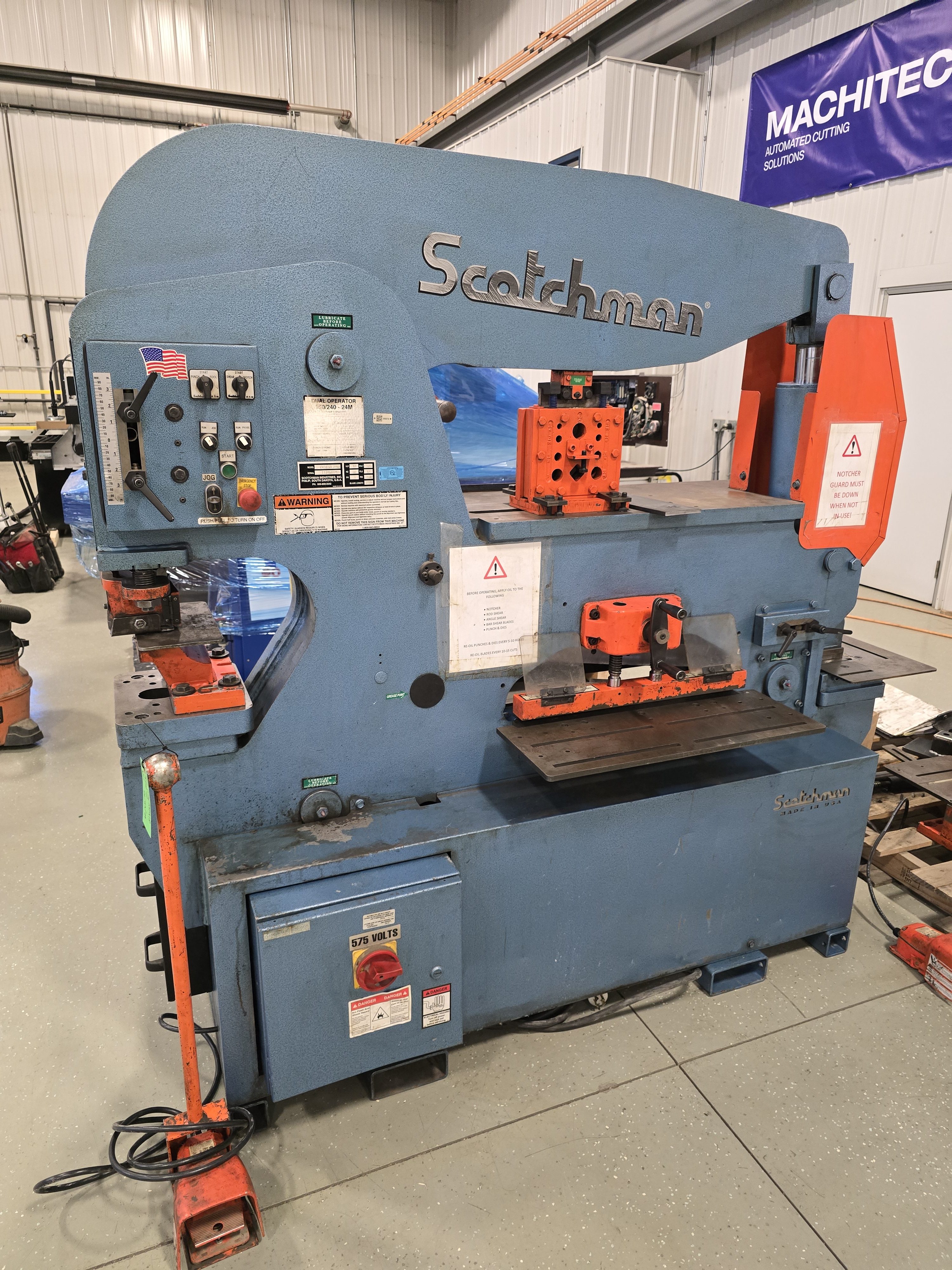

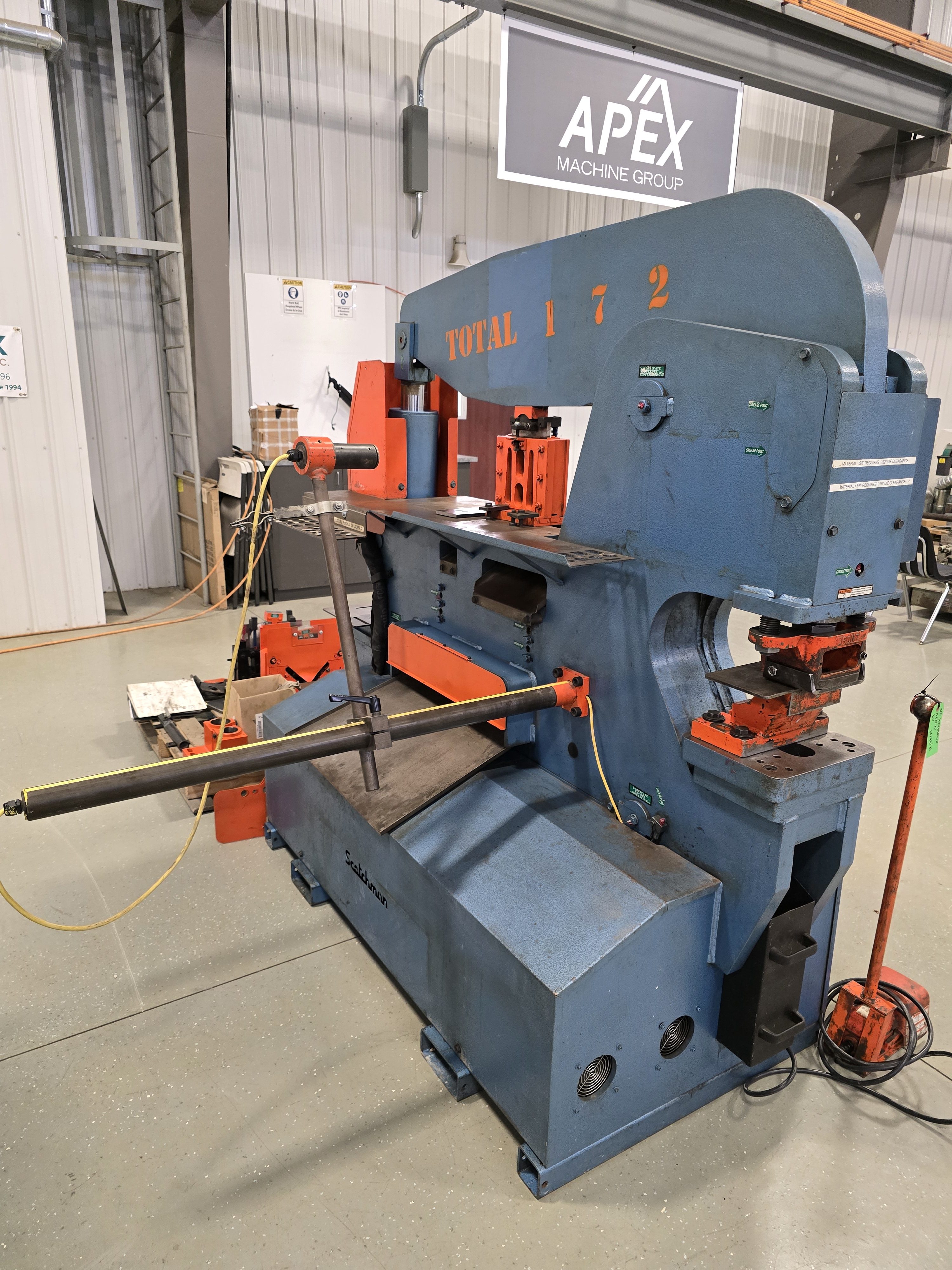

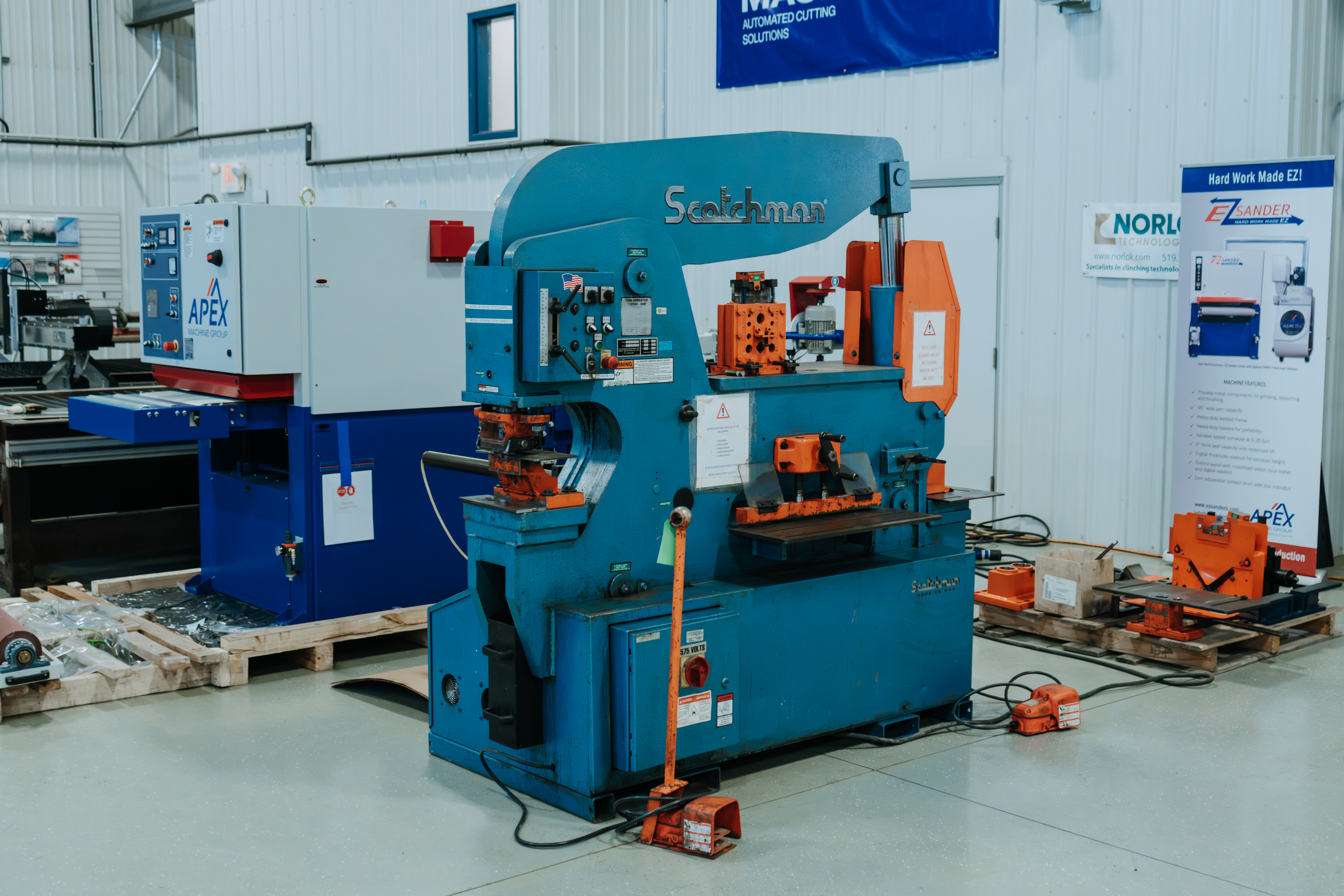

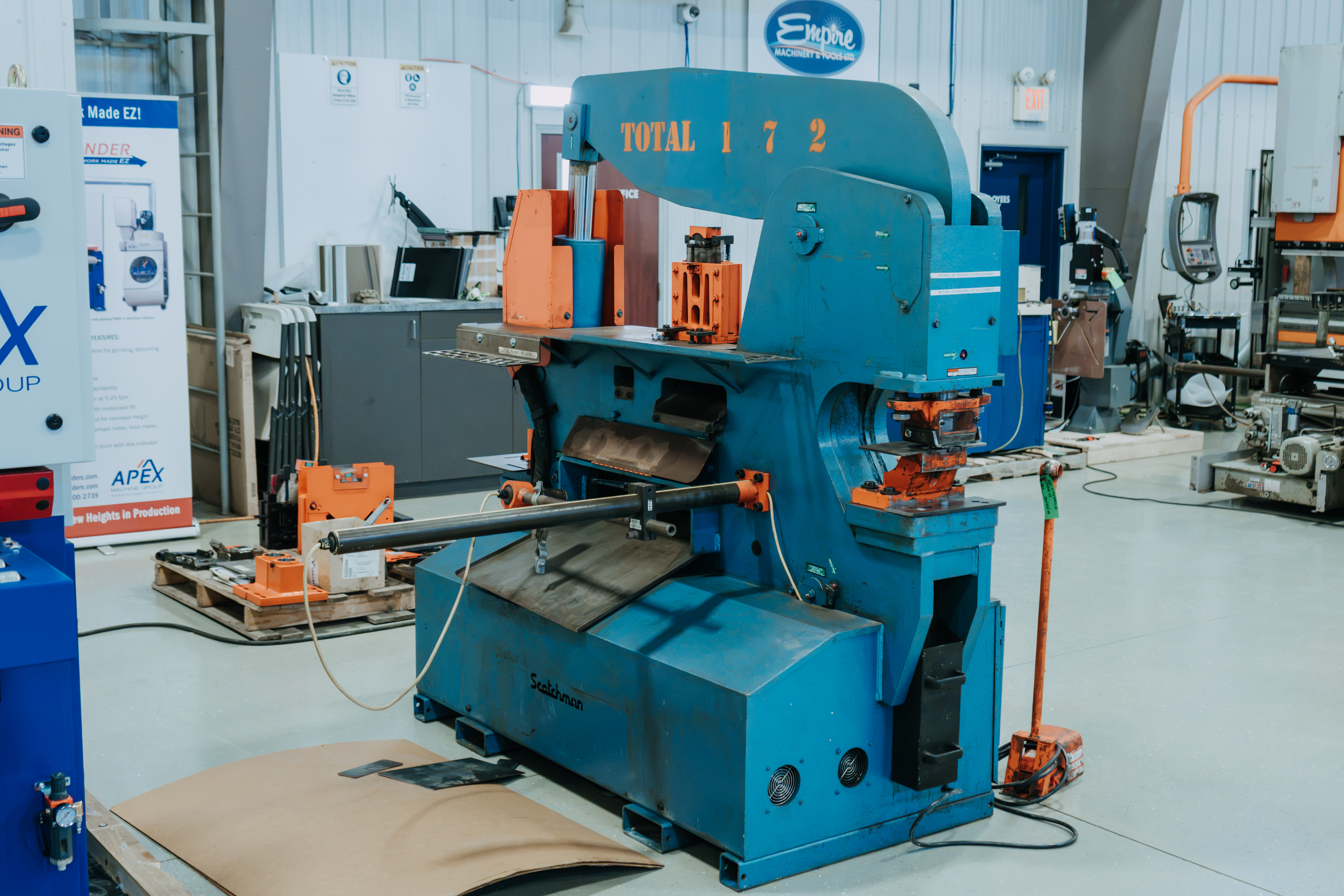

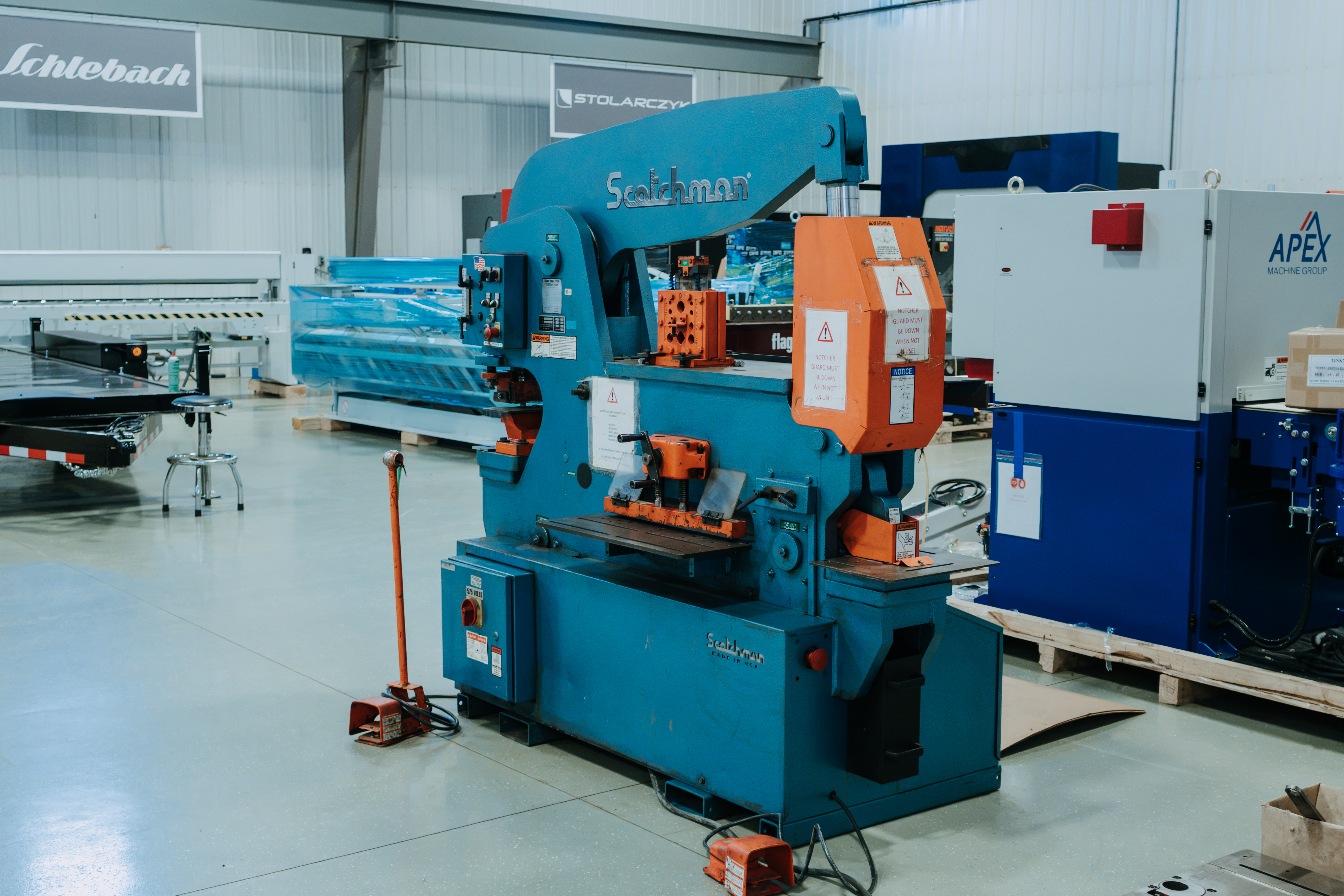

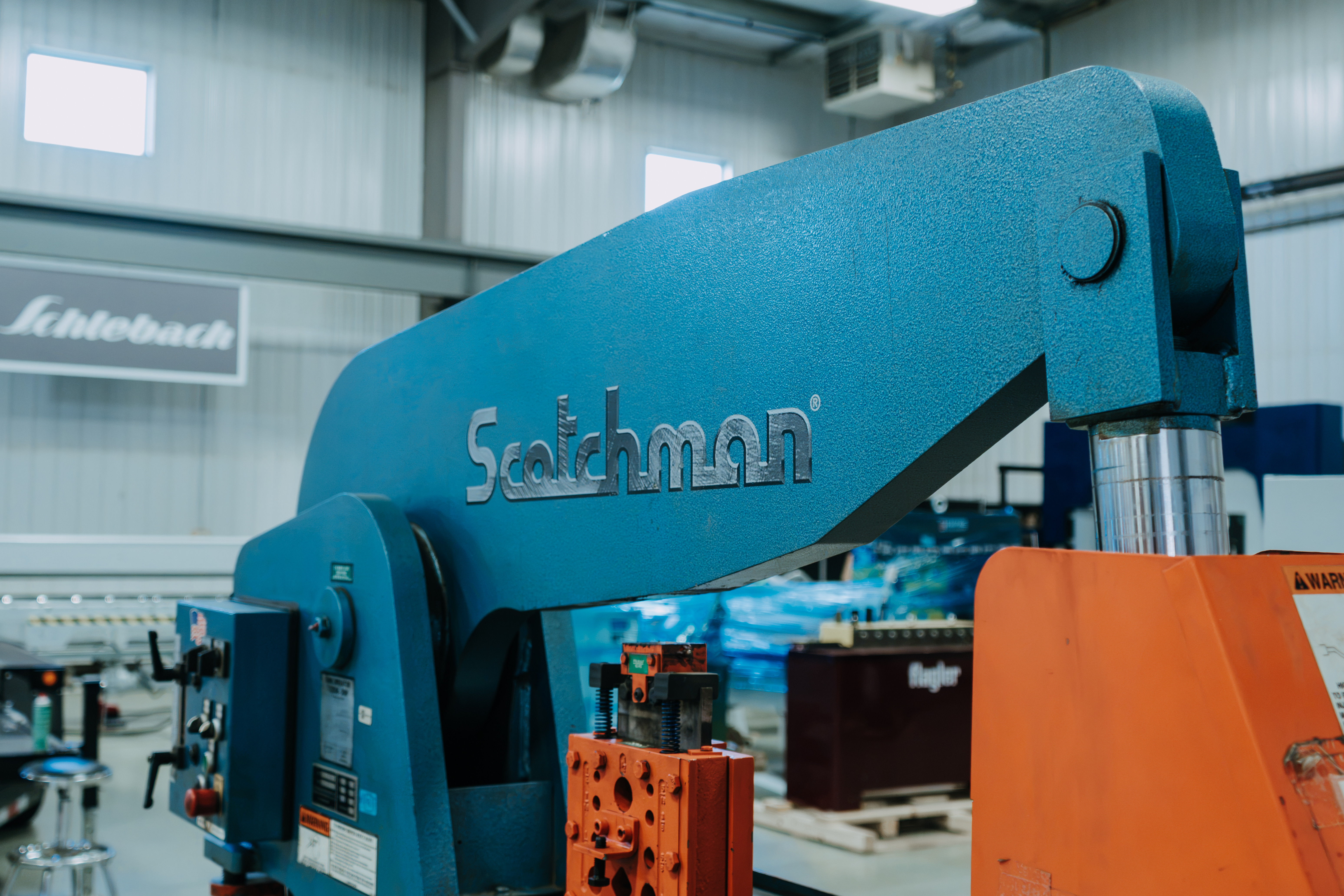

Pre-Owned Scotchman 150 ton Ironworker
The Scotchman DO 150/240-24M dual operator ironworker has four standard built-in features that include a 150-ton punch (1-7/8” in 1"), a 6” x 6” x 1/2" angle shear, a 24” plate shear (1” x 14”, 3/4” x 24”) and a rectangle notcher.
Standard Features
- Dual Operator, 5 Stations

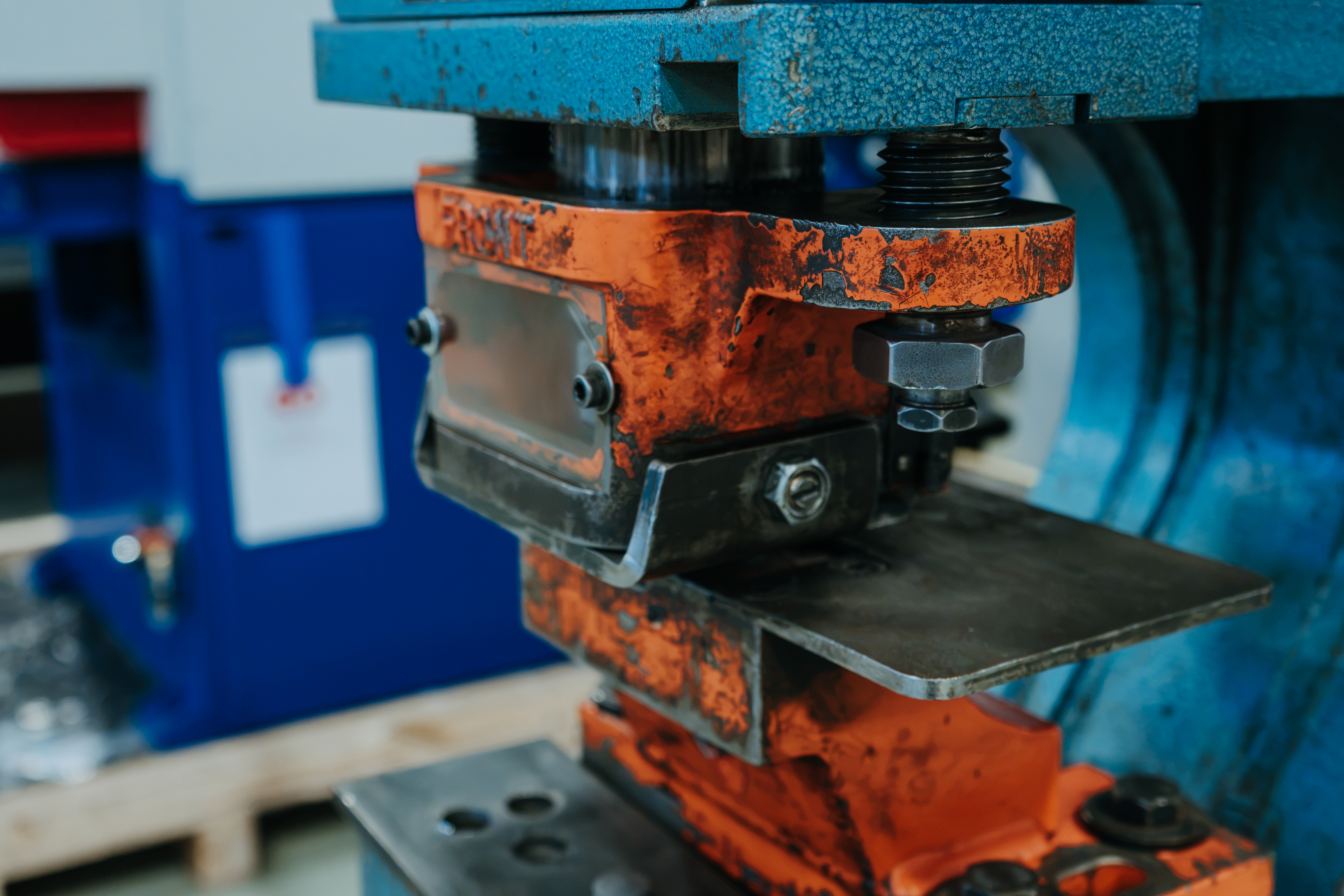

- 150 Ton Punch Station (1-7/8″ in 1″)
- Keyed Punch Ram for Safety
- 12″ Throat Depth

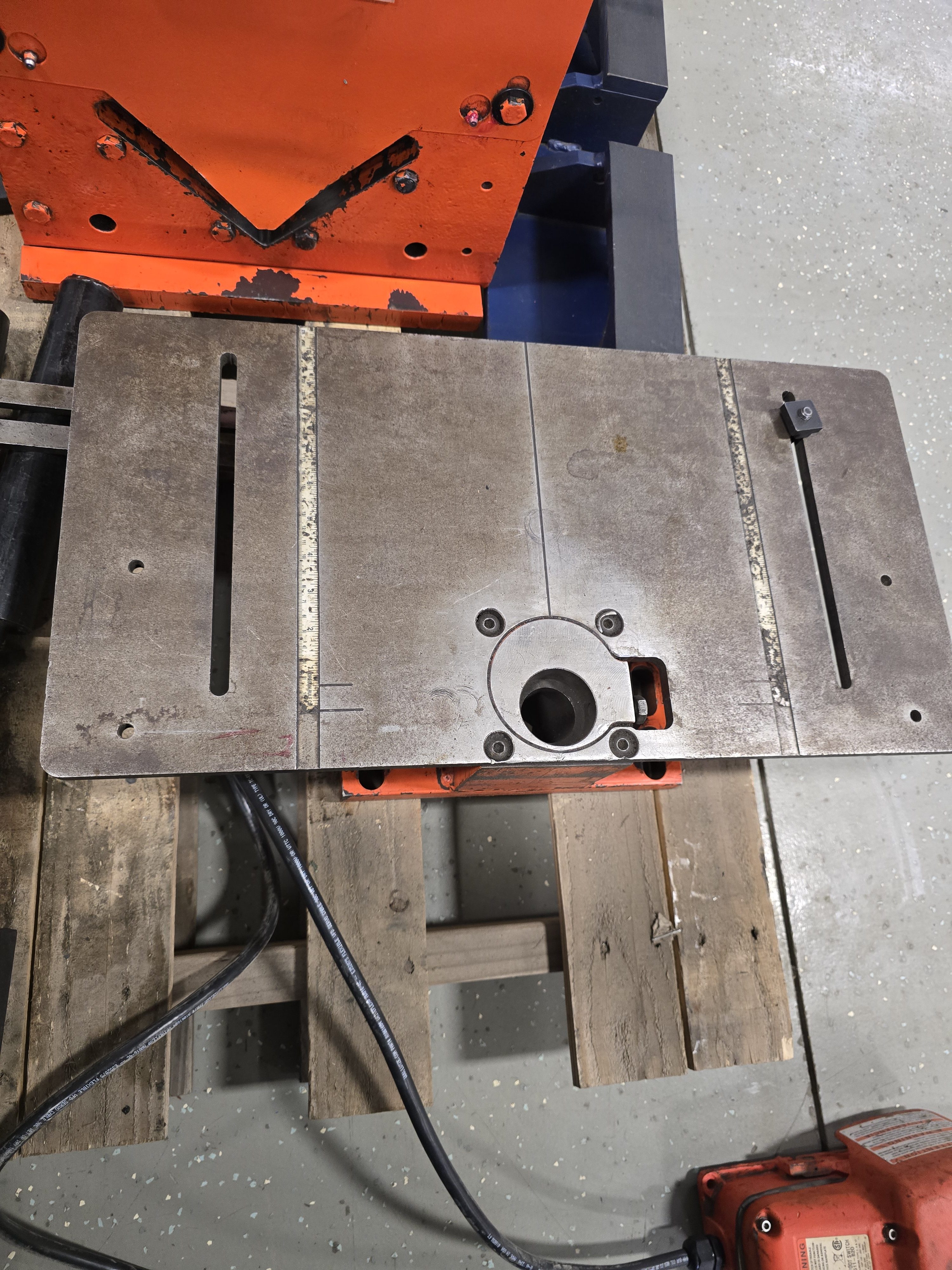

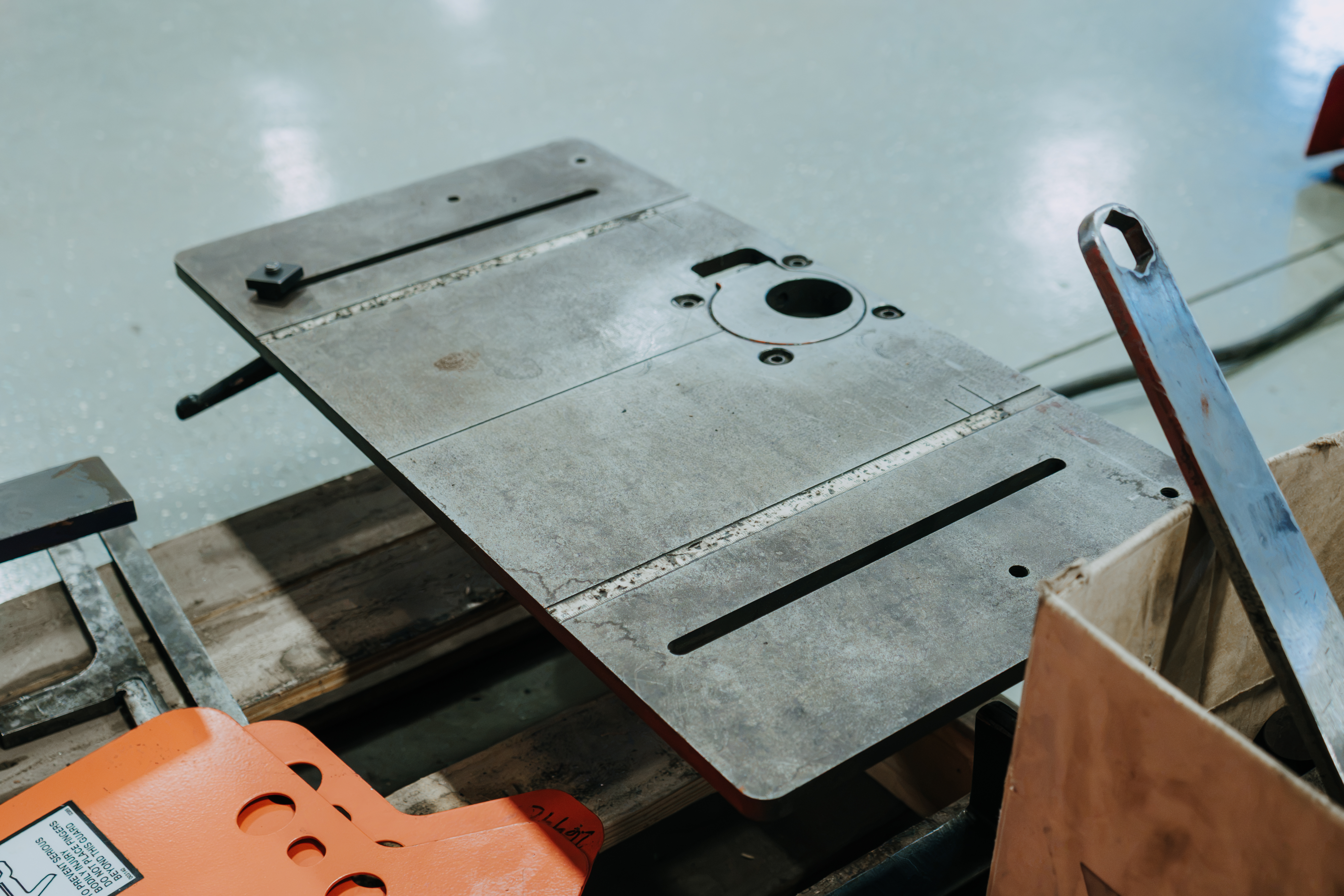

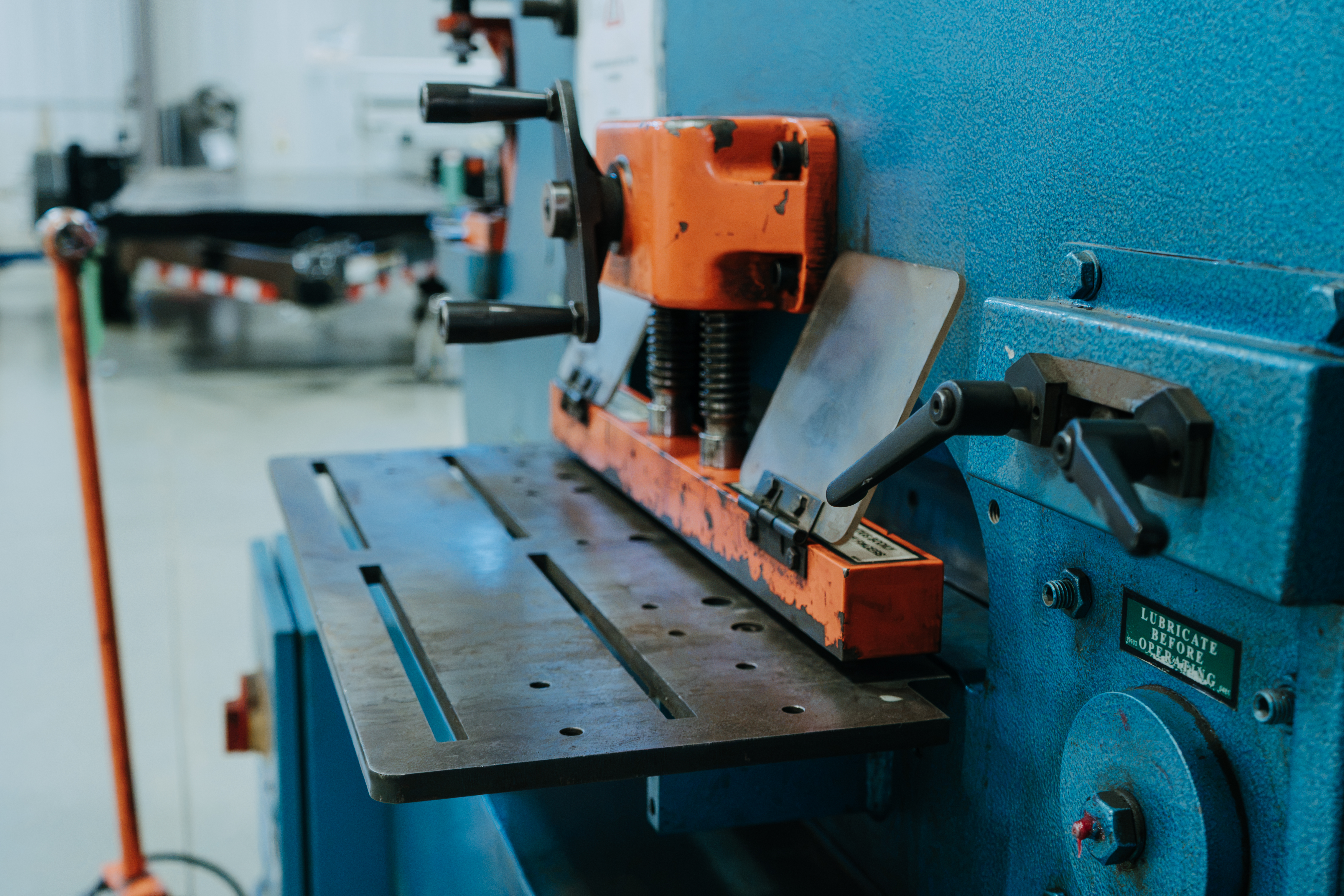

- Punch Gauging Table with Fence and Scale
- Die Holder Complete with 2″ Die Insert
- Punch Nut with Wrench & Stripper
- Adjustable Swing-Away Stripper
- One Round Punch & Die: Max. Dia. 1-1/4″
- Punch Jog Control

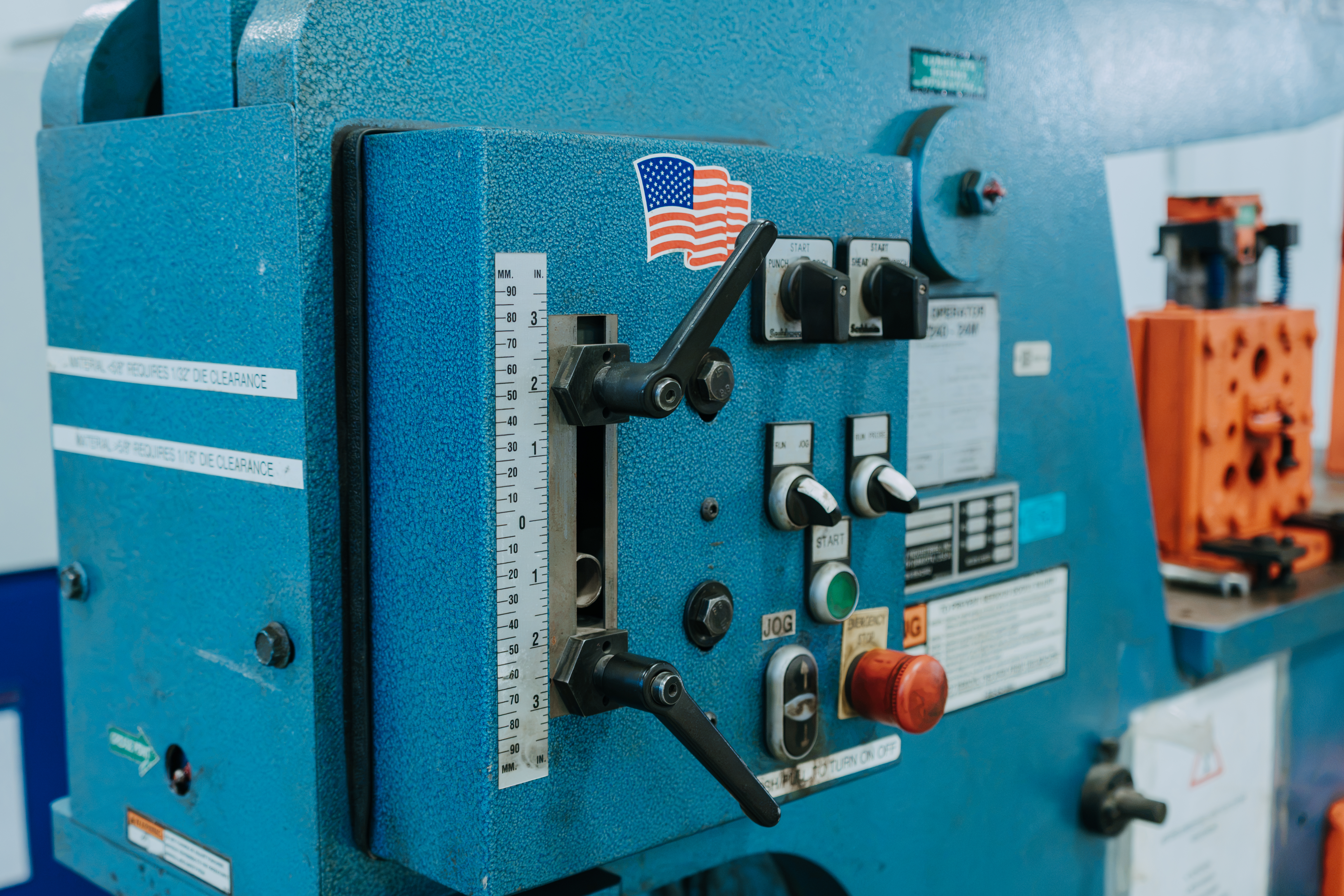

- Two Adjustable Electric Stroke Controls with Scale
- Two Electric Remote Foot Pedals
- Two 2-Stage Hydraulic Pumps
- Two Valves
- Angle Shear Capacity 6″ x 6″ x 1/2″ at 90°

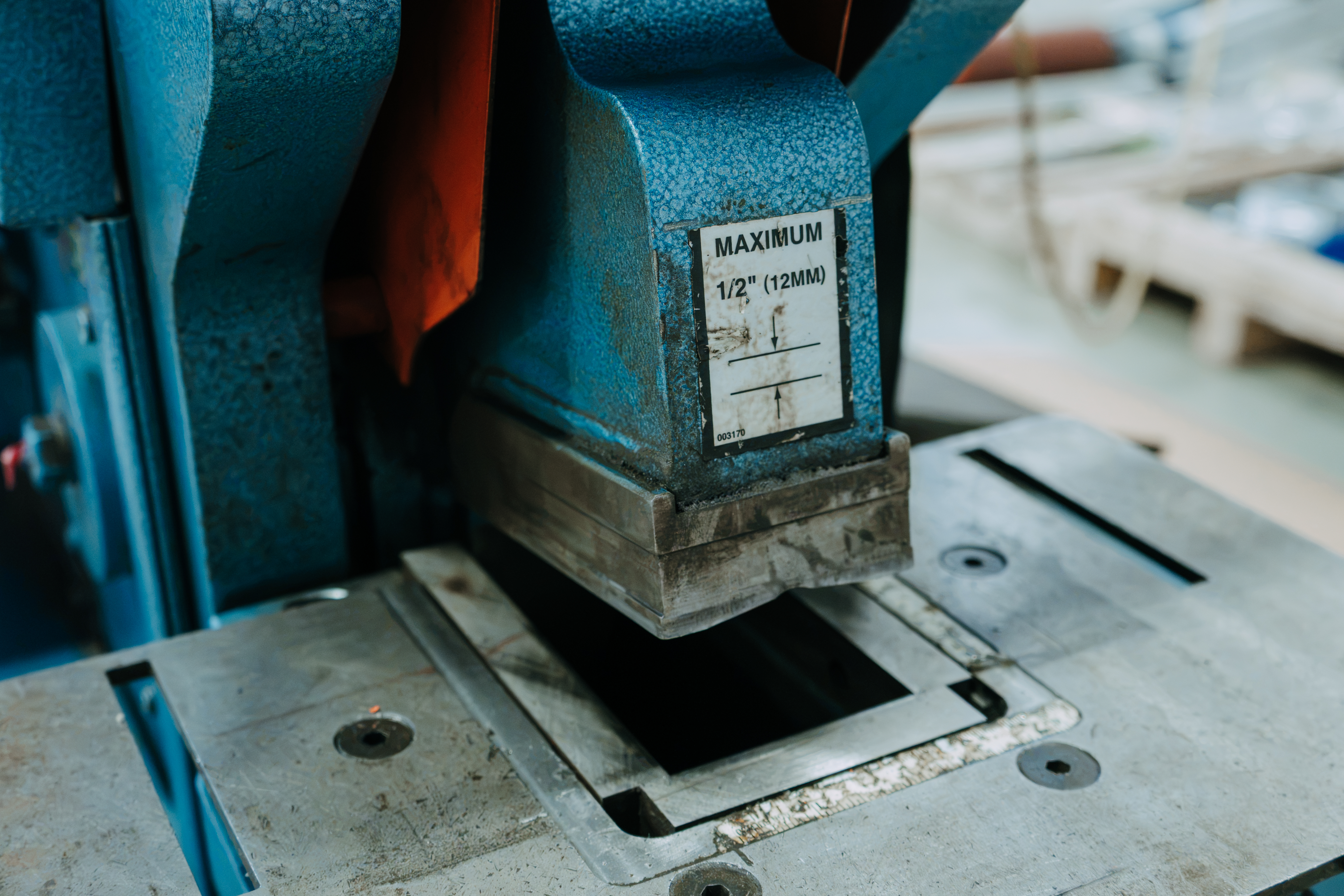

- Rectangle Notcher 3″ x 5″ x 3/8″ 3″ x 4″ x 1/2″
- Notcher Table with Guides

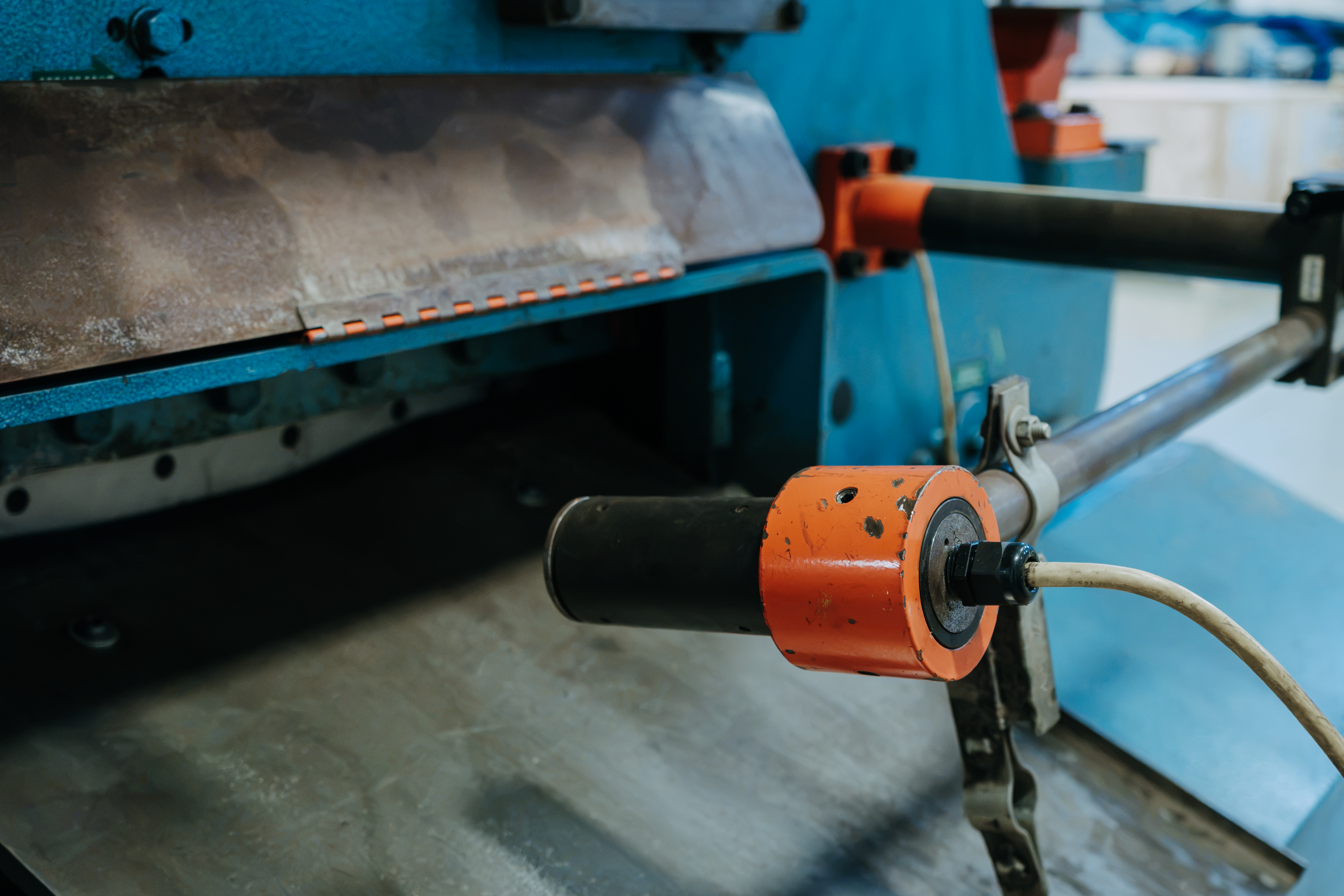

- 240 Ton, 24″ Flat Bar Shear with Sabre Blade (1″ x 14″, 3/4″ x 24″)
- Shear Table with Miter Fence
- Tool Table Work Area
- Slug Receptacles

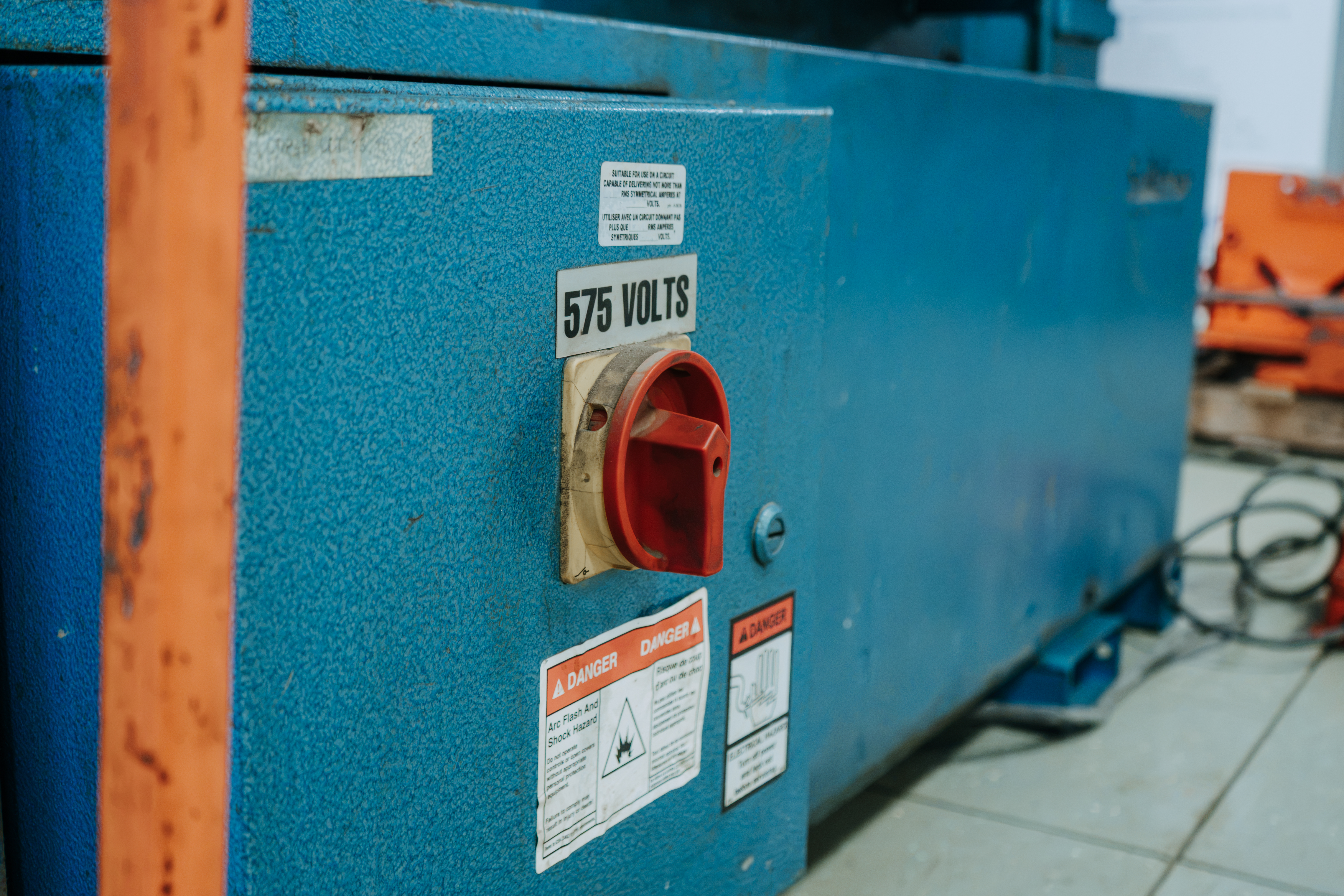

- Electrical Box Supplied
- Emergency Palm Button and Lock-out Tag-out Accommodations
- 230/460 Volt/3 Phase Electrics (must specify voltage)
- Forklift Accommodations
Rated On – 65,000 PSI tensile
Punching Capacity
- 150 ton
- 1-1/2″ in 1-1/4″
- 1-7/8″ in 1″
- 2-1/2″ in 3/4″
Special Tooling – 4″ Max Diameter
Throat Depth – 12″
Flat Bar Shear
- 240 ton, 24″ Length
- 1″ x 14″
- 3/4″ x 24″
Angle Shear 90° – 6″ x 6″ x 1/2″
Angle Shear 45° with Bar Shear
- 3″ x 3″ x 3/8″
- 4″ x 4″ x 1/2″
Brake 12″ – 90 ton
Brake 14″ – 70 ton
Open End Brake – Max. 1/4″ x 5″ Flat or Angle Iron
Pipe Notcher Housing Schedule 40 I.D.
- 3/4″, 1″
- 1-1/4″
- 1-1/2″, 2″
90° V-Notcher – 6″ x 6″ x 5/16″
Rectangle Notcher – 3″ x 5-3/4″ x 1/2″
V-Notch – 3″ x 3″ x 1/2″
Notching in Leg of Channel – 6″ to 10″
Channel Shear – 2″ to 6″ Adj.
Rod Shear Round Rod (Max.), Square Rod (Max.)
- Round – 1/4″ to 1-1/4″, 9 Cav.
- Square – 1/4″ to 1″, 1 Cav.
Square Tube Shear – 1/2″ to 2″ 12 ga.
Picket Tool – 1/2″, 3/4″, 1″, 16 ga.
Offset Die Holder – Max. 40 ton
Strokes Per Minute in Light Material – 52 spm (1/4″ stroke)(punch station)
Strokes Per Minute in Heavy Material – 17 spm (3/4″ stroke)(punch station)
Hydraulics – 3,500/3,500 psi
Motors
- 10 hp 3 ph
- 575/3/60
Dimensions – W-34″ L-77.25″ H-74.25″
Shipping Weight – 6,404 lbs
